Dimplex Cassette 500 Multicolor R SS — colour flames made of cold mist

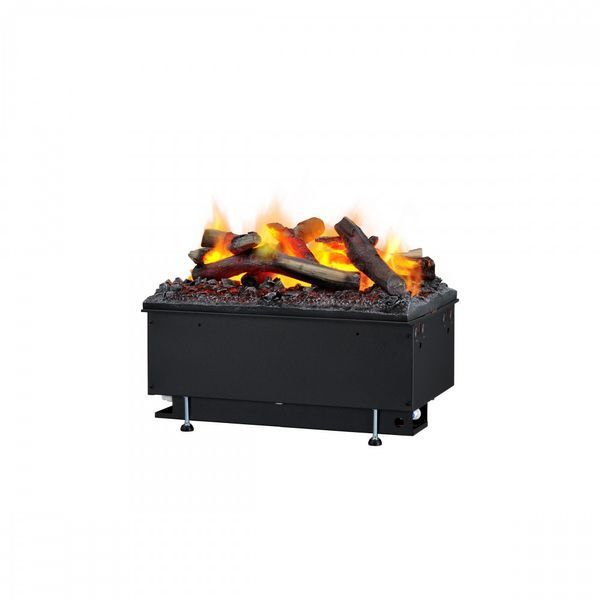

A 508 mm cassette for building into a recess, surround or furniture. Opti-Myst technology turns ordinary water into a fine cold mist lit by multicolour LEDs, creating a three-dimensional flame with gentle smoke that looks real from every angle. The R version runs from a built-in water tank, so no plumbing is needed — just a power socket. The SS version comes with a decorative log set.
What makes it special

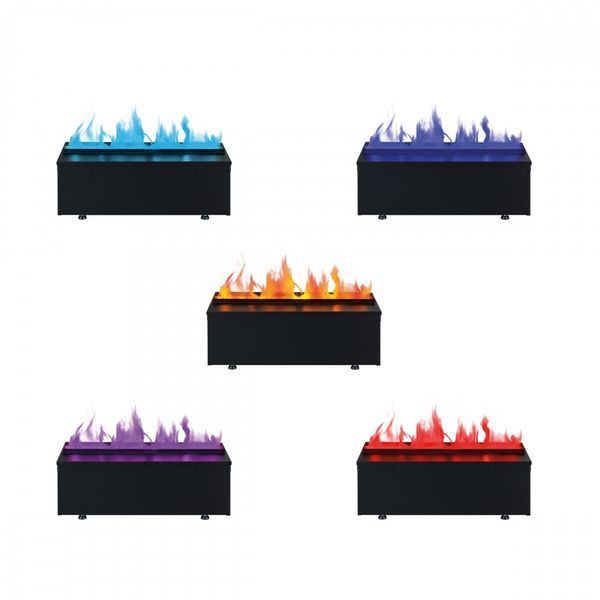

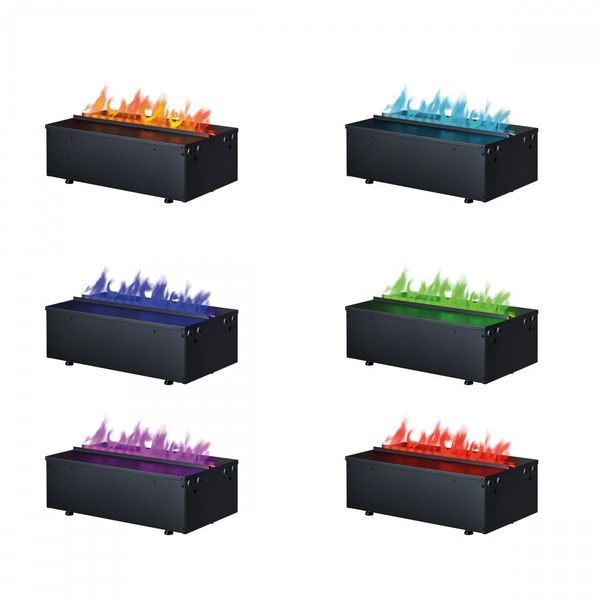

- Colour flames. 5 preset colours plus Prism mode with smooth colour cycling. Create your own combinations in the Flame Connect app.
- Lifelike fire. 6 brightness levels and 6 mist intensity levels.
- Crackling logs. 6 sound levels, switched on from the remote.
- 360° view. the flame looks three-dimensional from anywhere in the room.
- Modular. connect it with other Cassette 500 and 1000 units to build a flame line of any length.
- No plumbing needed. the built-in tank gives 8–10 hours of operation; all you need is a socket.
How it works
An ultrasonic transducer breaks water into micro-droplets. The cold mist rises above the fuel bed and is lit from below by LEDs, producing moving flames and soft smoke. The mist is not hot: it is safe to touch, leaves no soot and adds a little humidity to the room.
Installation and care

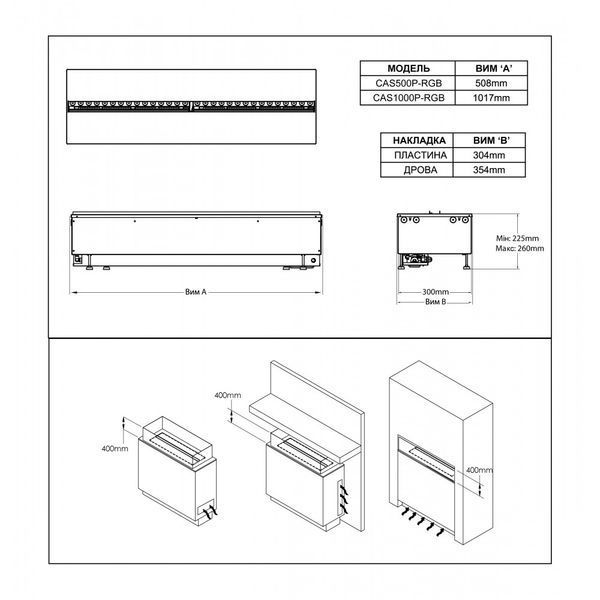

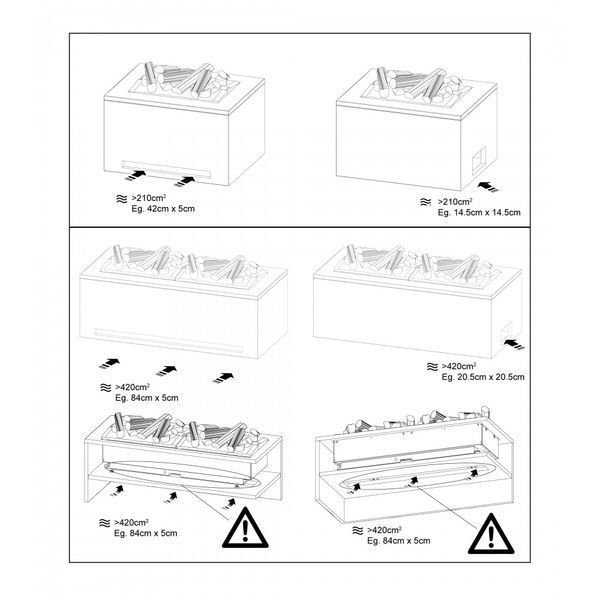

The cassette fits into a frame or surround made of any material; height is set with adjustable feet. The control panel is hidden, and both a Bluetooth remote and a wired remote are included. See the manufacturer's manual for installation dimensions.
A full tank gives 8–10 hours of operation, after which it is topped up by hand. If you need continuous operation, look at the P version with a mains water connection.
Specifications
| Brand, country | Dimplex, Ireland |
| Model | CAS500MULTIRSS |
| Flame technology | Opti-Myst |
| Type | built-in cassette |
| Water supply | manual, tank — 8–10 h |
| Heating | none |
| Visual effect power | 280 W |
| Dimensions (W×H×D) | 508×390×354 mm |
| Weight | 17 kg (fire 12 kg + logs 5 kg) |
| Flame | 5 colours + Prism mode |
| Sound | crackling logs, 6 levels |
| Control | 2 remotes (wired and Bluetooth), on-unit panel, Flame Connect app |
| Body colour | black |
| Power supply | 220 V |
